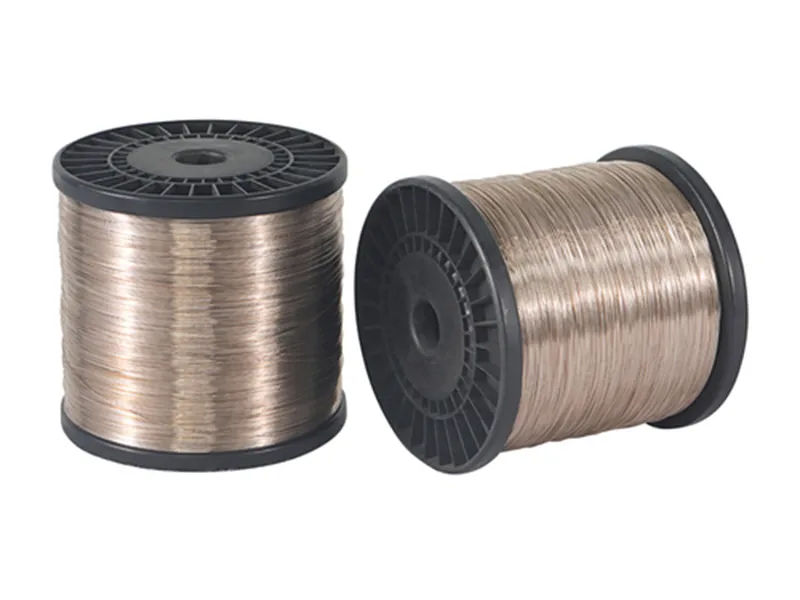

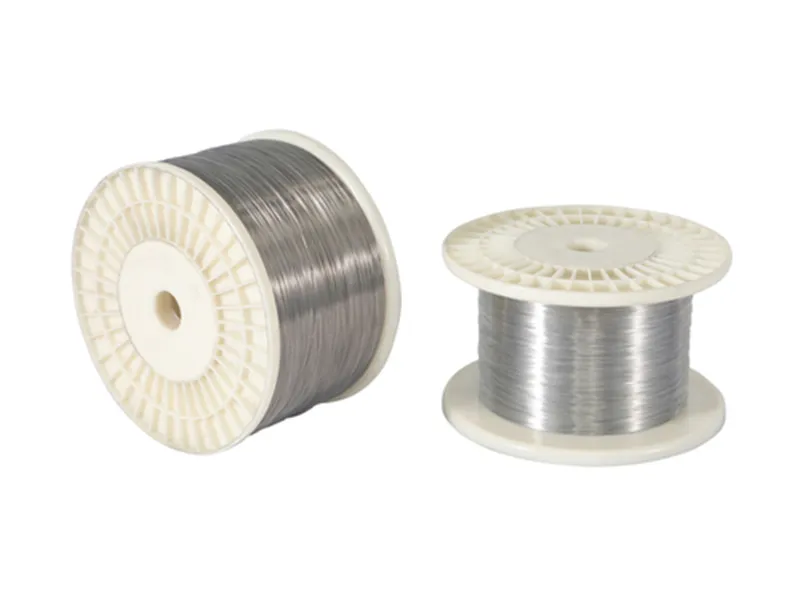

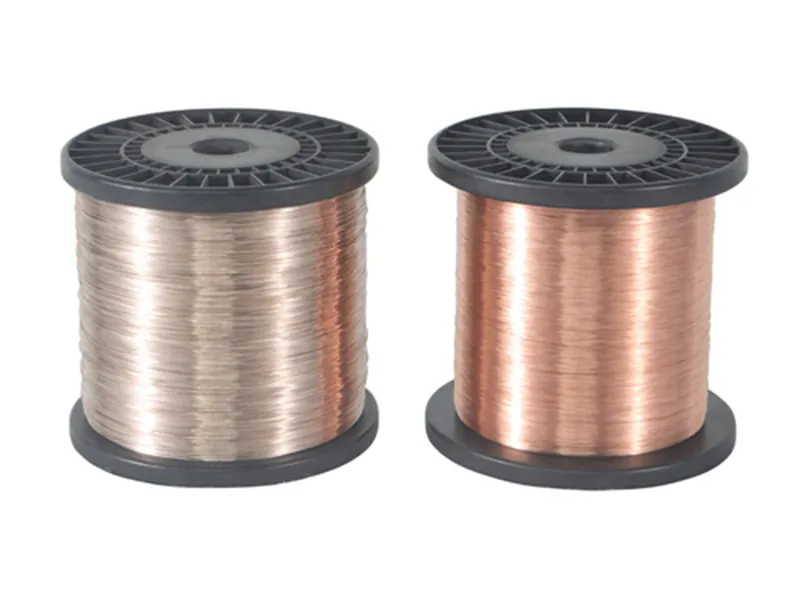

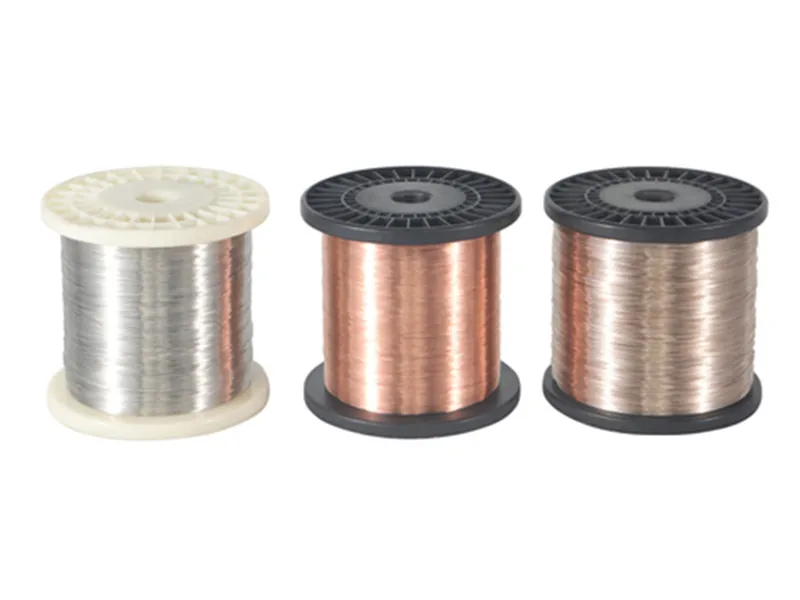

    Copper Nickel Alloy Wire (CuNi)

    Copper nickel alloy wire is produced by alloying copper with nickel through a smelting process. The alloy is then processed through drawing, annealing, electroplating, and stranding to create wires in various configurations. The copper nickel alloy wire is available in single wire, stranded wire, multi-strand ropes, and parallel multi-wires, with diameters ranging from 0.08mm to 2.0mm.

    Typical Applications
    • Low voltage electrical products like circuit breakers, heating blankets, and thermal overload relays, operating at temperatures up to 200°C.
    • Aerospace and electronics components, where high performance and resistance to environmental factors are critical.
    • Applications requiring high-temperature stability and resistance to corrosion, ensuring long-term reliability in demanding environments.
    Request a Quote
    Physical Properties
    Density (g/cm³) 8.9
    Electrical Conductivity at 20℃ (Ω.mm²/m) 0.03
    Temperature Coefficient of Resistance (20℃-600℃) ×10⁻⁵/℃ < 100
    Conductivity Coefficient at 20℃ (W/mK) 145
    Electromotive Force Against Copper (μV/℃) (0-100℃ ) -8
    Specific Heat Capacity
    Temperature (℃) 20
    Specific Heat (J/gK) 0.380
    Melting Point (℃) 1085
    Max. Continuous Operating Temperature in Air (℃) 200
    Magnetic Properties Non magnetic
    Mechanical Properties (1.0mm)
    Yield Strength (Mpa) 90
    Tensile Strength (Mpa) 210
    Elongation (%) 25
    Coefficient of Thermal Expansion
    Temperature (℃) 20 to 400
    Thermal Expansion ×10⁻⁶/K 17.5
    Corrosion Resistance Performance
    Alloy Corrosion Resistance at 20℃ Corrosion Resistance at Max. Working Temperature 200°C
    Air and Other Oxygen-Containing Gases Nitrogen Containing Gas Oxidizability of Sulfur-Containing Gas Reducibility of Sulfur-Containing Gas Carburization
    CuNi1 Good Poor Poor Poor Poor Good
    Types of CuNi Conductor We Offer
    Conductor Type Conductor Size (mm)
    Wire Diameter:0.06-8
    Ribbon Width:0.4-40 Thickness:0.05-2.9
    Strip Width:8-200 Thickness:0.1-3.0
    Foil Width:6-120 Thickness:0.005-0.1
    Bar Diameter:8-100 Length:50-1000
    General Product Information
    Item Code Electrical Resistivity Max. Operating Temperature (℃) Temperature Coefficient of Resistance Thermal Electromotive Force Against Copper (0-100℃) Chemical Composition (%) Mechanical Properties
    Tensile Strength (N/mm²) Elongation (%)
    Mn Ni Cu Diameter ≤1.00mm Diameter >1.00mm
    NC003 0.03 200 <100 -8 - 1 Balance 210 >18 >25
    NC005 0.05 200 <120 -12 - 2 Balance 220 >18 >25
    NC010 0.10 220 <60 -18 - 6 Balance 250 >18 >25
    NC012 0.12 250 <57 -22 - 8 Balance 270 >18 >25
    NC015 0.15 250 <50 -25 - 10 Balance 290 >20 >25
    NC020 0.20 300 <38 -28 0.3 14.2 Balance 310 >20 >25
    NC025 0.25 300 <25 -32 0.5 19 Balance 340 >20 >25
    NC030 0.30 300 <16 -34 0.5 23 Balance 350 >20 >25
    NC035 0.35 350 <10 -37 1.0 30 Balance 400 >20 >25
    NC040 0.40 350 0 -39 1.0 34 Balance 400 >20 >25
    NC050 0.49 400 <-6 -43 1.0 44 Balance 420 >20 >25
    Copper Nickel Alloy Wire (CuNi)
    Copper Nickel Alloy Wire (CuNi)
    Copper Nickel Alloy Wire (CuNi)
    Features
    • Copper-nickel alloy wire provides superior strength and resistance to bending compared to traditional copper wire. The addition of nickel improves its high-temperature stability and corrosion resistance, ensuring reliability in demanding applications.
    • Nickel-plated copper wire provides excellent oxidation resistance, thermal stability, and corrosion resistance. These properties are especially beneficial for high-frequency applications, where minimizing signal loss is critical.

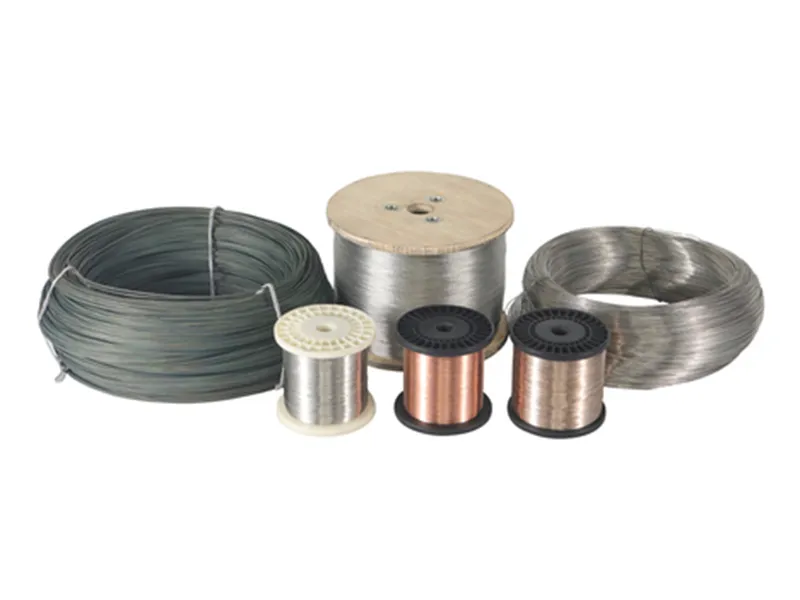

    Wire Spools & Packaging
    • We provide wire spools in three different types: plastic, wood, and metal. Each option is designed to cater to specific customer preferences and ensure efficient handling and storage.
    • Standard packaging options include cardboard boxes, foam boxes, wooden crates, and wooden pallets, ensuring safe transport and handling.
    • Wooden packaging such as crates and pallets are made from fumigated solid wood or non-fumigated plywood. Custom packaging solutions are available based on customer requirements.
