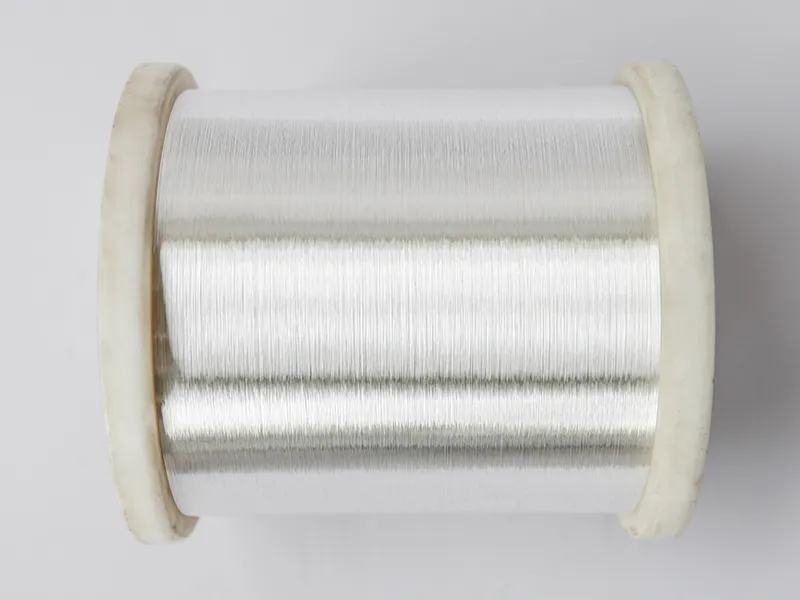

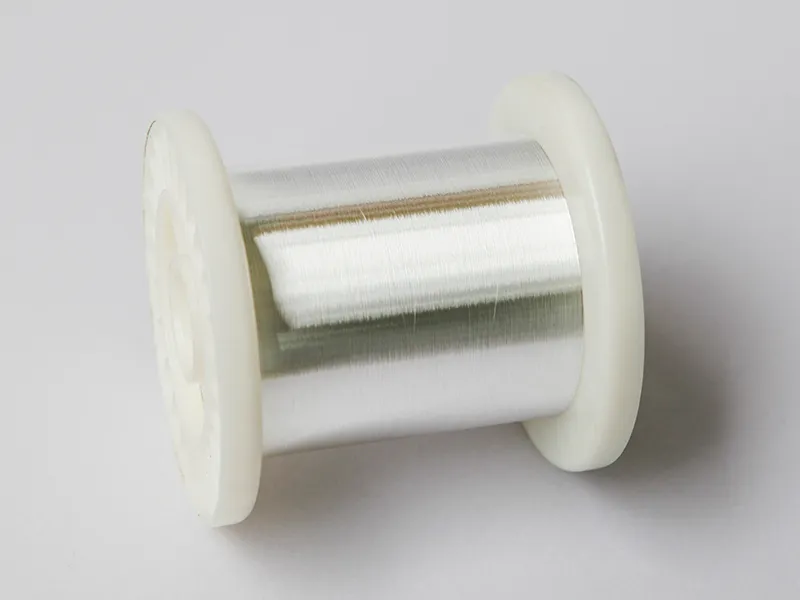

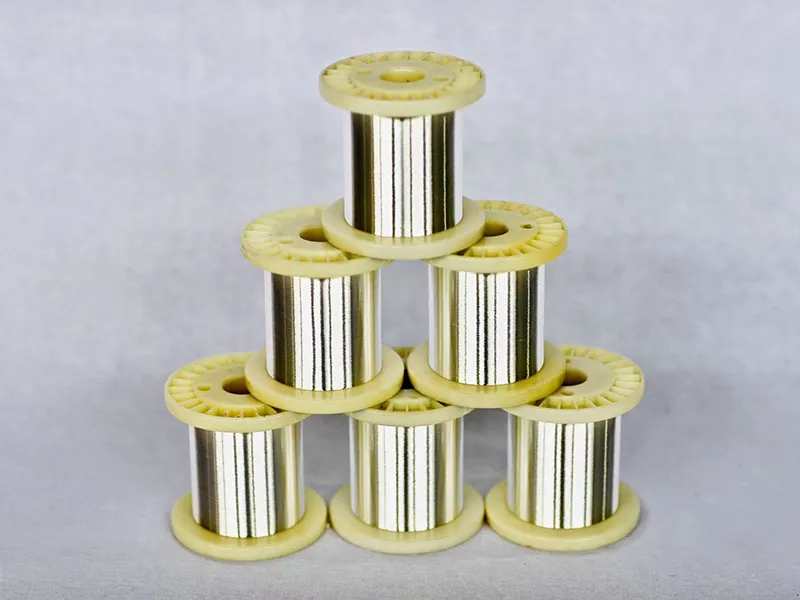

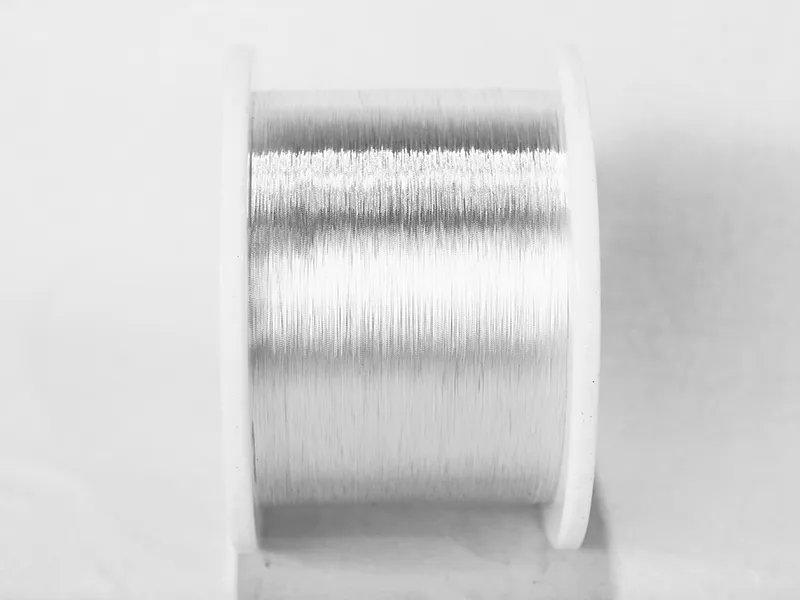

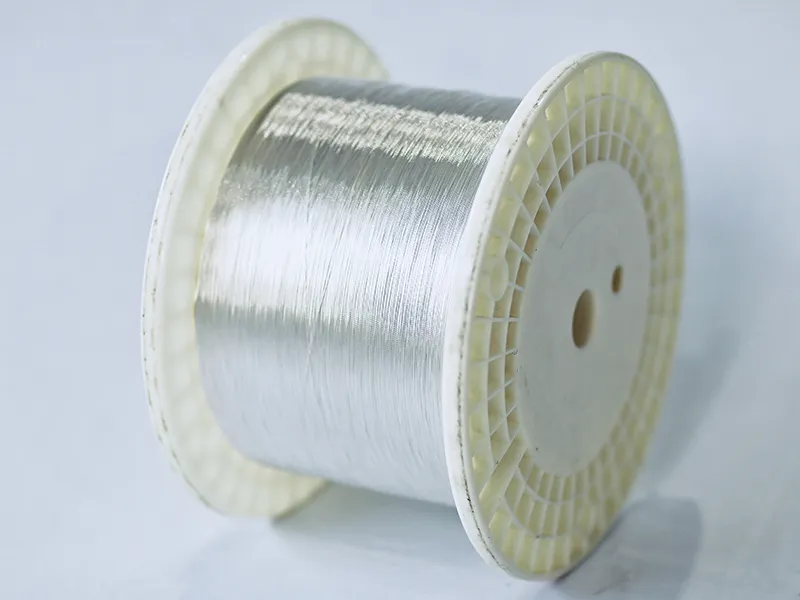

  • Silver Plated Wire
  • Silver Plated Wire
  • Silver Plated Wire
  • Silver Plated Wire
  • Silver Plated Wire

    • Silver Plated Wire

    Copper, copper alloy or other metal conductors with a silver coating

    Silver-plated wire is made by coating copper, copper alloy, or other metal conductors with a layer of silver, which can then be further processed through drawing, annealing, and stranding to meet specific requirements. We offer silver-plated copper, alloy, copper-clad steel, and copper-clad aluminum conductors, with diameters ranging from 0.016mm to 4mm. The silver coating significantly improves electrical conductivity, thermal performance, corrosion resistance, and oxidation resistance at high temperatures. These properties make silver-plated wire particularly suitable for applications where low contact resistance and strong soldering performance are essential.

    Request a Quote
    Specifications

    Stranded Wire with Insulation

    Wire Size (AWG) Conductor Insulation Max. Conductor Resistance (Ω/Km at 20℃) Dielectric Withstanding Voltage (A.C.V/1min.) Approx. Weight (kg/km)
    Conductor Configuration
    (strands/mm)    		 Outer Diameter (mm) Standard Thickness (mm) Outer Diameter (mm)
    28AWG 7/0.127 0.380 0.100 0.580 223 500 1.102
    30AWG 7/0.102 0.300 0.100 0.500 354 500 0.759
    32AWG 7/0.08 0.240 0.070 0.380 597 500 0.452
    34AWG 7/0.064 0.190 0.070 0.330 900 500 0.312
    36AWG 7/0.05 0.150 0.060 0.270 1900 500 0.199
    38AWG 7/0.04 0.120 0.060 0.240 3000 500 0.159
    40AWG 7/0.03 0.090 0.060 0.210 5000 500 0.110
    42AWG 7/0.025 0.075 0.060 0.195 7500 500 0.089
    44AWG 7/0.02 0.060 0.037 0.134 12500 350 0.046
    46AWG 7/0.016 0.048 0.033 0.114 18000 350 0.032
    48AWG 7/0.013 0.039 0.027 0.093 30000 350 0.021
    50AWG 7/0.01 0.030 0.023 0.076 37500 150 0.014

    Solid Wire

    Wire Type Wire Diameter Tolerance (mm) Resistance (Ω/m) Conductivity (% IACS) Elongation (%) Tensile Strength (Mpa) Plating Thickness (μm)
    0.021mm Silver Plated Copper Wire 0.020-0.022 ＜ 64.5 at 20℃ ＞85 at 20℃ - ＞ 619 ＞ 0.35
    0.025mm Silver Plated Copper Wire 0.024-0.026 ＜ 44.8 at 20℃ ＞ 85 at 20℃ - ＞ 655 ＞ 0.38
    0.102mm Silver Plated Copper Wire - 2103-2163 - >15 240-257 ＞1.32
    1.60mm Silver Plated Copper Wire - 8.429 - 28.2-30.0 230-239 5.0-7.5
    0.127mm Silver Plated CCS Wire - ≤ 3661 - ≤5 ≥600 ≥1.3
    0.254mm Silver Plated Nickel Wire - - - 16.7-18.5 - 1.01
    0.12mm Silver Plated CCA Wire - ≤ 2393 at 20℃ ≥64 at 20℃ ＞5 ≥172 ≥3

    Stranded Wire

    Wire Type Elongation (%) Tensile Strength (MPa) Direction of Lay Length of Lay (mm) Number of Wires Resistance (Ω/Km) Plating Thickness (μm)
    7/0.08 Silver Plated Copper Wire ≥ 15 ≥ 230 S 3.3-3.7 7 ≤588 at 20℃ ≥ 0.3
    19/0.16 Silver Plated Copper Wire ≥ 6 - S - 19 ≤ 49.541 at 20℃ ≥1.27
    19/0.12 Silver Plated Copper Wire ≥ 6 - S - 19 ≤ 83.50 at 20℃ ≥1.0
    24/0.08 Silver Plated Copper Wire ≥ 6 - S - 24 ≤153.0 at 20℃ ≥ 1.27
    Typical Applications

    Silver-plated copper wire is widely used in industries where high conductivity and durability are required:

    • Electronics & electrical: Precision electronic equipment, circuit connections, and high-frequency circuits.
    • Telecommunications: Communication cables and fiber optic networks.
    • Aerospace: Avionics, satellite communication, and aerospace wiring systems.
    • Defense & military: Military-grade communication systems and weaponry.
    • Medical devices: Manufacturing of medical equipment and surgical device connections.
    • Renewable energy: Solar panel wiring and electric vehicle components.
    • Other industries: Industrial electrical systems, instrumentation, and smart robotics.
    Features
    • Provides high electrical and thermal conductivity, ensuring efficient power and signal transmission.
    • Offers corrosion and oxidation resistance, maintaining performance in harsh environments and high temperatures.
    Wire Spools & Packaging

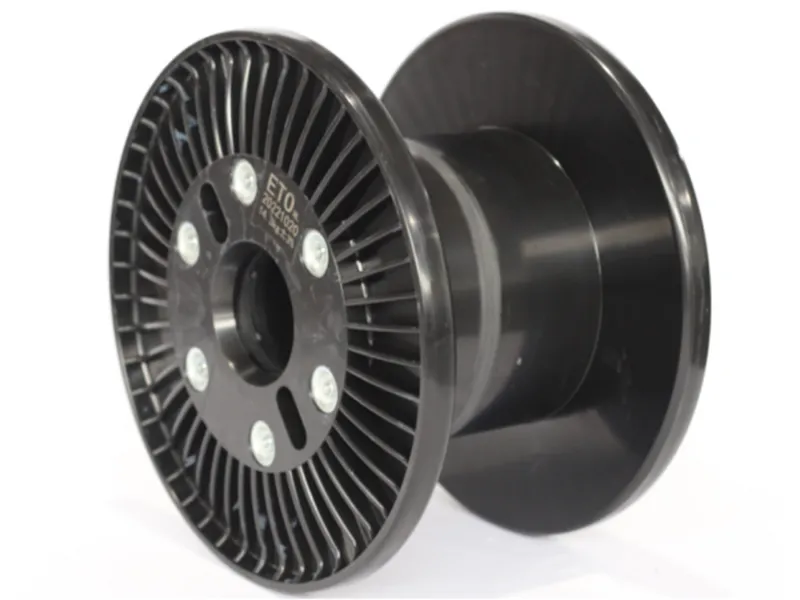

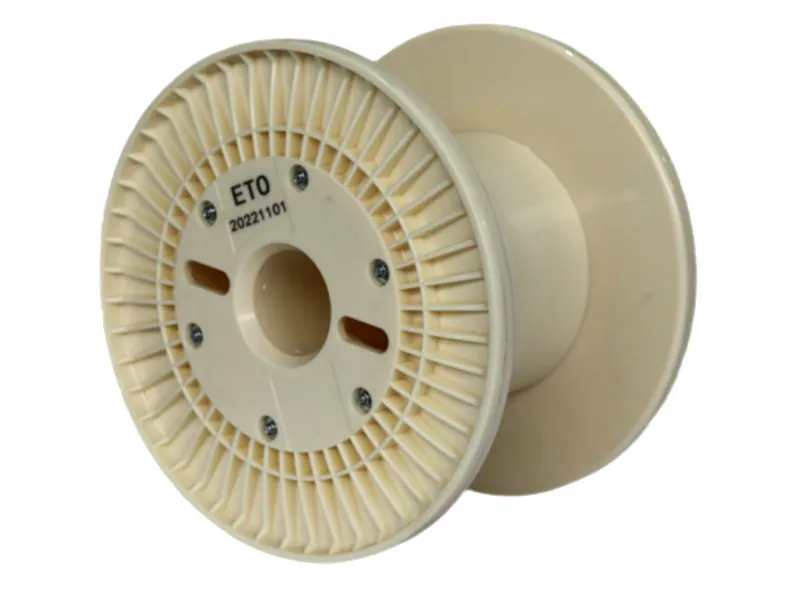

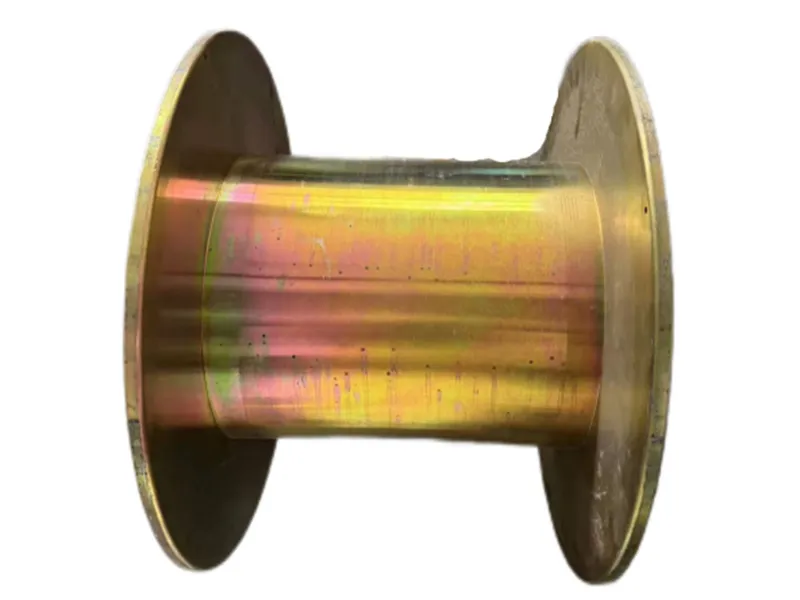

    • We provide wire spools in three different types: plastic, wood, and metal. Each option is designed to cater to specific customer preferences and ensure efficient handling and storage.

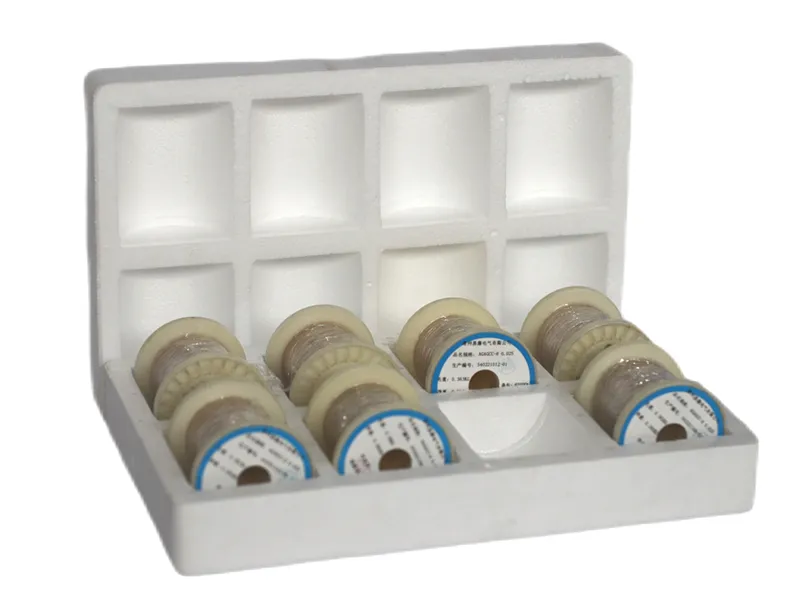

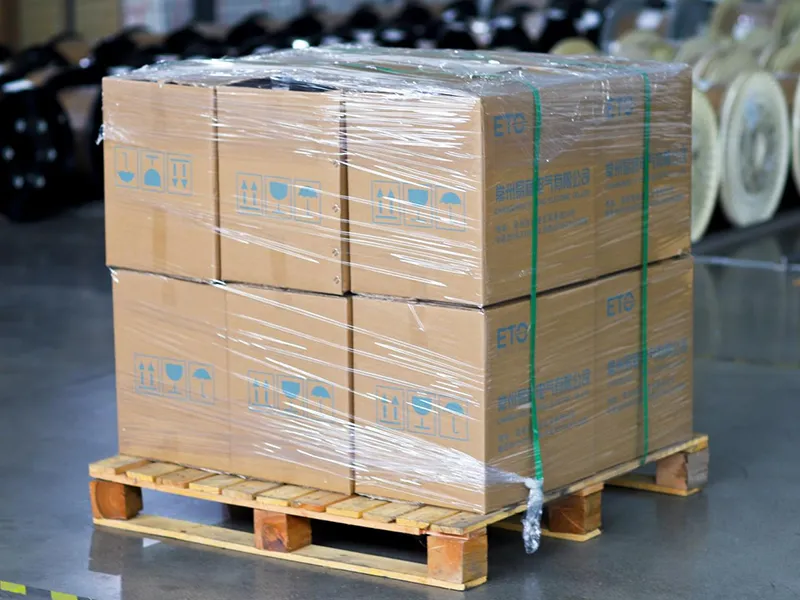

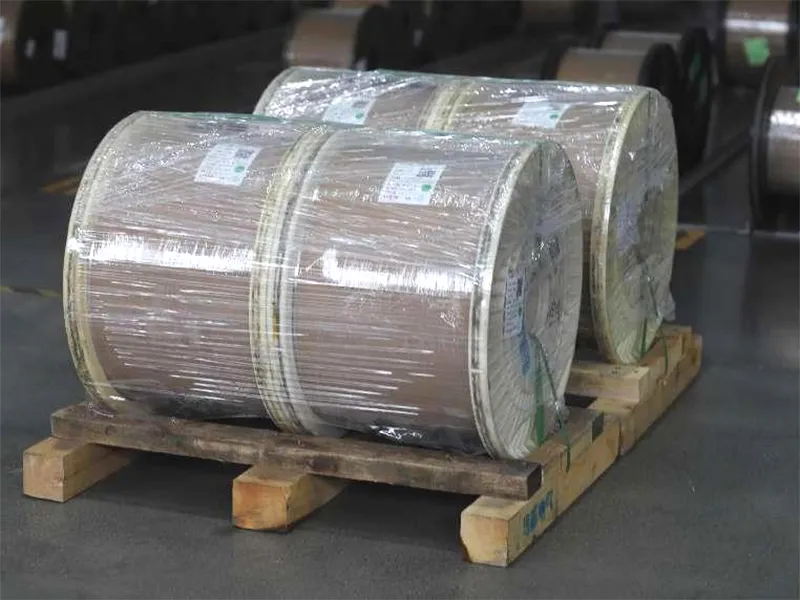

    • Standard packaging options include cardboard boxes, foam boxes, wooden crates, and wooden pallets, ensuring safe transport and handling.

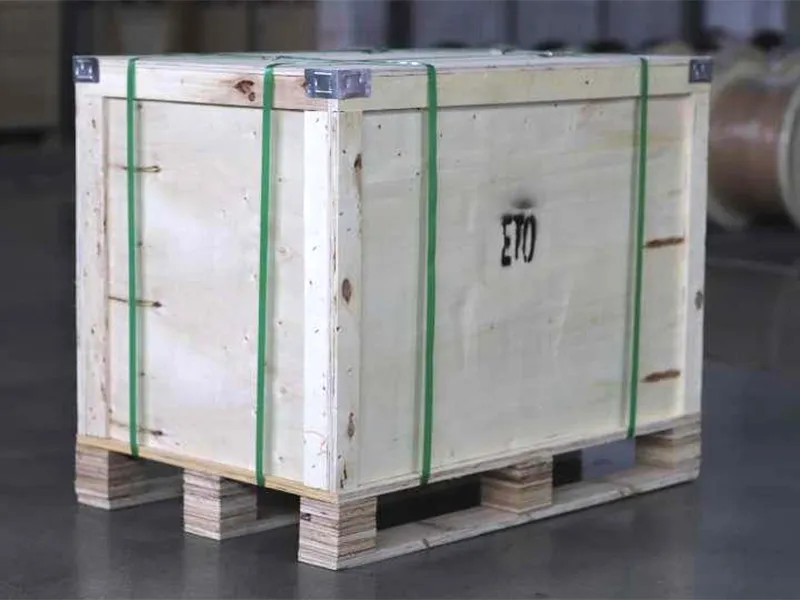

    • Wooden packaging such as crates and pallets are made from fumigated solid wood or non-fumigated plywood. Custom packaging solutions are available based on customer requirements.
    • Wire Spools & Packaging
    • Wire Spools & Packaging
    • Wire Spools & Packaging
    • Wire Spools & Packaging
    • Wire Spools & Packaging
    • Wire Spools & Packaging
    • Wire Spools & Packaging
