Copper Magnesium Alloy Wire (CuMg)

Magnesium content ranging from 0.10% to 0.4%

Copper Alloy Conductor

Copper Magnesium Alloy Wire (CuMg)

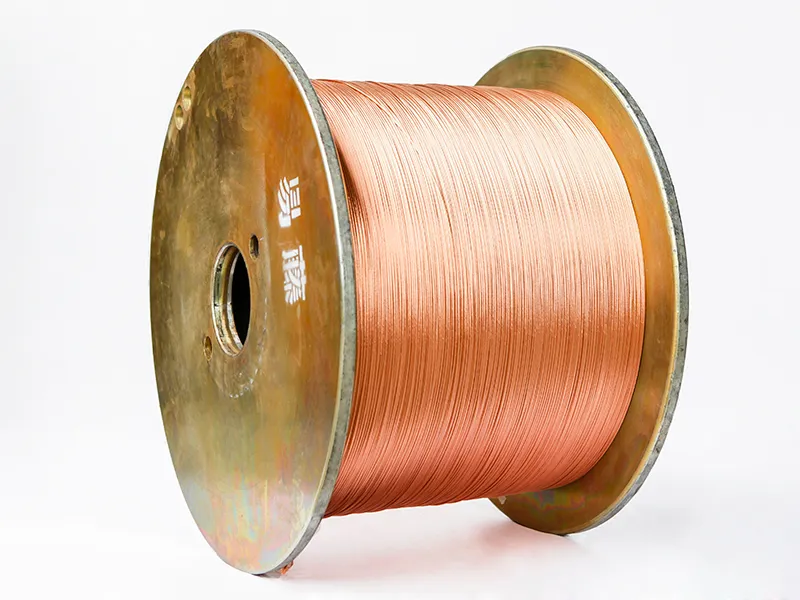

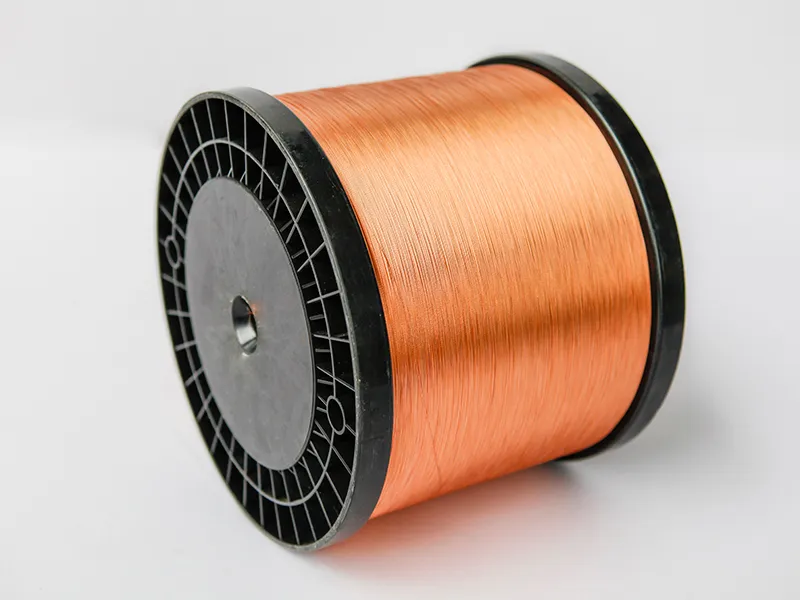

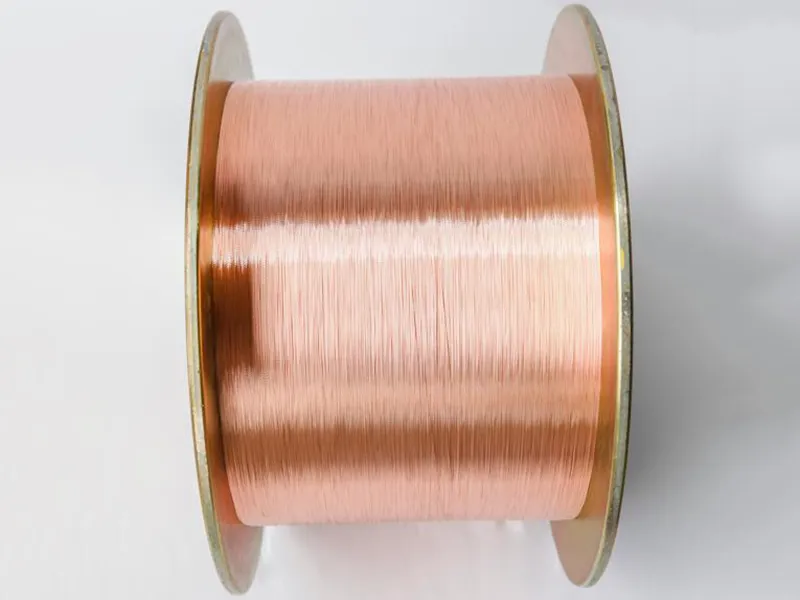

Copper magnesium alloy wire combines high strength with excellent resistance to bending, providing an ideal solution for various demanding applications. We produce this alloy with magnesium content ranging from 0.10% to 0.4% using a refined smelting process. Afterward, the alloy undergoes drawing, annealing, electroplating, and stranding to meet the required specifications. Available in single wire, stranded wire, multi-strand ropes, and parallel multi-wire configurations, the wire diameter typically ranges from 0.03mm to 8.0mm.

Wire Drawing Range

0.2351mm→0.0805mm (13 drawing dies)
0.641mm→0.164mm (19 drawing dies)
0.4610mm→0.127mm (20 drawing dies)

Request a Quote

Specifications

Copper Alloy	Magnesium Content	Melting Point	% IACS	Properties
CuMg 0.2	Mg 0.14-0.26%	1078℃	75	Copper magnesium alloy (CuMg) provides high tensile strength and maintains reliable electrical conductivity at 20°C in a soft condition.

Options of Custom Secondary Processing

Wire Drawing	Wire Stranding/Multi-Wire Processing	Wire Plating
Can be drawn down to 0.02mm	Stranded Wires,Parallel Multi Wires	Bare Wire,Tin Plating,Silver Plating,Nickel Plating,Copper Plating Enameling: Polyurethane QA(UEW),155/180℃ Polyester QZ(PEW),130/155℃ Polyesterimide QZY(EIW),180℃ Polyamideimide QXY(AIW),200/220℃

Wire Stranding Range

Wire Type	Magnesium Content	Tensile Strength (Mpa)	Single Wire Diameter (mm)	DC Resistance at 20℃	Lay (mm)	Size (mm)
7/0.154 CuMg 0.2	Mg(0.2±0.06)%	>700	0.152-0.160	160-170	10.0-14.0	0.43-0.49

Wire Plating Range

Construction	Number of Wires	Coating Material	Thickness	Elongation
0.90mm	1	Silver	7μm	Min. 10%
1.30mm	1	Silver	17μm	Min. 22%
1.80mm	1	Tin	3μm	Min. 15%

Typical Applications

Central control wiring harnesses

Communication wiring harnesses

Aerospace wiring systems

ABS brake system wiring

Wiring for industrial robots

Features

Compared to traditional copper wire, copper magnesium alloy wire offers superior strength and enhanced flexibility. Although the alloy has slightly higher resistance, the impact on signal transmission is minimal, ensuring reliability in applications that require durability and flexibility.

Wire Spools & Packaging

We provide wire spools in three different types: plastic, wood, and metal. Each option is designed to cater to specific customer preferences and ensure efficient handling and storage.
Standard packaging options include cardboard boxes, foam boxes, wooden crates, and wooden pallets, ensuring safe transport and handling.
Wooden packaging such as crates and pallets are made from fumigated solid wood or non-fumigated plywood. Custom packaging solutions are available based on customer requirements.
