    Pure Copper Wire

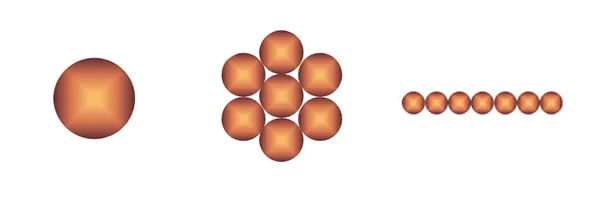

    The pure copper wires we offer have a copper content of over 99.95%, and are designed to meet diverse industrial needs. Our pure copper wires are available in various configurations, including single wire, stranded wire, multi-strand wire rope, and parallel multi-wire, with diameters ranging from 0.02mm to 8.0mm. The manufacturing process to obtain quality pure copper wires includes drawing, annealing, stranding, electroplating, and insulation, ensuring consistent quality and adaptability for different applications.

    Wire Drawing Range
    • 0.460mm→0.265mm (6 drawing dies)
    • 1.070mm→0.432mm (10 drawing dies)
    • 0.03658mm→0.02135mm (14 drawing dies)
    Request a Quote
    Specifications
    Conductor Material Wire Diameter (mm) Purity Structure State
    Copper 0.02-8.0 ≥99.95% Single solid wire, stranded wire, parallel multi-wire
    Pure Copper Wire
    		 Hard (Non-Annealed) Soft (Annealed)
    Options of Custom Secondary Processing
    Wire Drawing Wire Stranding/Multi-Wire Processing Wire Plating
    Can be drawn down to 0.02mm Stranded Wires
    parallel multi-wires    		 Bare Wire,Tin Plating,Silver Plating,Nickel Plating,Copper Plating
    Enameling:
    Polyurethane QA(UEW),155/180℃
    Polyester QZ(PEW),130/155℃
    Polyesterimide QZY(EIW),180℃
    Polyamideimide QXY(AIW),200/220℃
    Wire Stranding Range
    Wire Type Elongation Number of Wires Direction of Lay Length of Lay(1) Length of Lay(2) DC Resistance at 20℃
    7*72*0.080AC Annealed Copper Wire Min.10% 504 S/S 12±2mm 25±2mm 6.25-7.30Ω/Km
    7*57*0.080AC Annealed Copper Wire Min.10% 399 S/S 12±2mm 20±3mm 8.32-9.25Ω/Km
    19/25/0.12AC Annealed Copper Wire Min.10% 475 S/S 13.5-16.5mm 33-38mm 3.09-3.32Ω/Km
    Wire Plating Range
    Construction Number of Wires Coating Material Thickness Elongation
    0.90mm 1 Silver 7μm Min. 10%
    1.30mm 1 Silver 17μm Min. 22%
    1.80mm 1 Tin 3μm Min. 15%
    Typical Applications

    Pure copper wire is widely used in sectors such as:

    • Power transmission and low/medium voltage cables
    • Communication and data wiring
    • Automotive wiring systems
    • Windings for motors and transformers
    • Aerospace and railway applications
    • Renewable energy systems
    • Electronics and household wiring
    Features
    • Low resistivity supports efficient energy transfer, ensuring suitability for power lines, telecommunications, and intricate circuit systems.
    • Excellent thermal conductivity enables its use in heat dissipation applications, such as connections in electronics or heat sink components.
    • High ductility allows it to be formed into fine strands or robust configurations, which makes it suitable for various uses, from micro wiring harnesses to heavy-duty cables.
    • Ultra-fine diameters, starting at 0.02mm, combined with multi-strand designs, provide flexibility and resistance to bending for advanced applications.

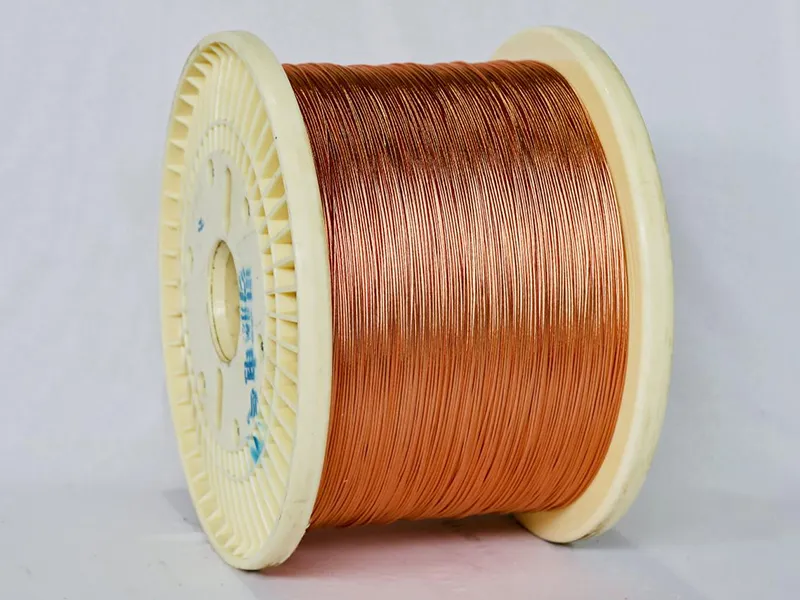

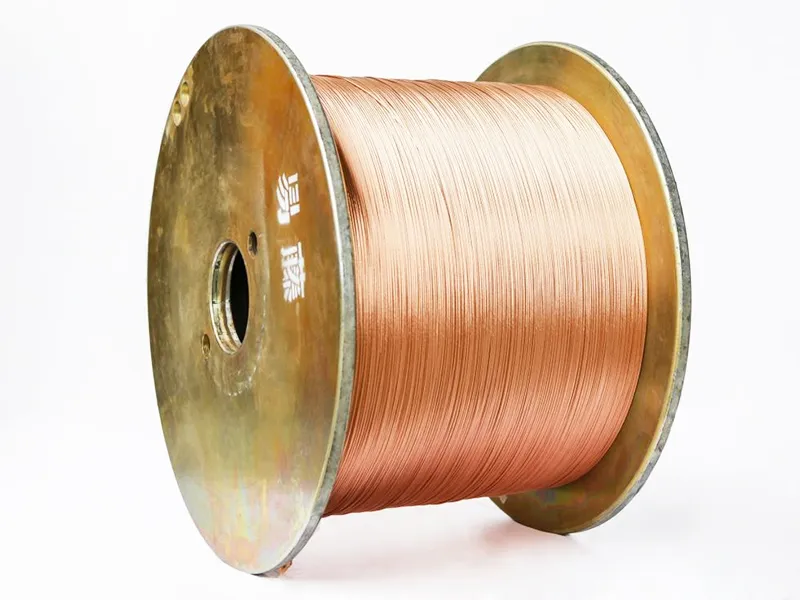

    Wire Spools & Packaging
    • We provide wire spools in three different types: plastic, wood, and metal. Each option is designed to cater to specific customer preferences and ensure efficient handling and storage.
    • Standard packaging options include cardboard boxes, foam boxes, wooden crates, and wooden pallets, ensuring safe transport and handling.
    • Wooden packaging such as crates and pallets are made from fumigated solid wood or non-fumigated plywood. Custom packaging solutions are available based on customer requirements.
    • Wire Spools & Packaging
    • Wire Spools & Packaging
    • Wire Spools & Packaging
    • Wire Spools & Packaging
    • Wire Spools & Packaging
    • Wire Spools & Packaging
    • Wire Spools & Packaging
