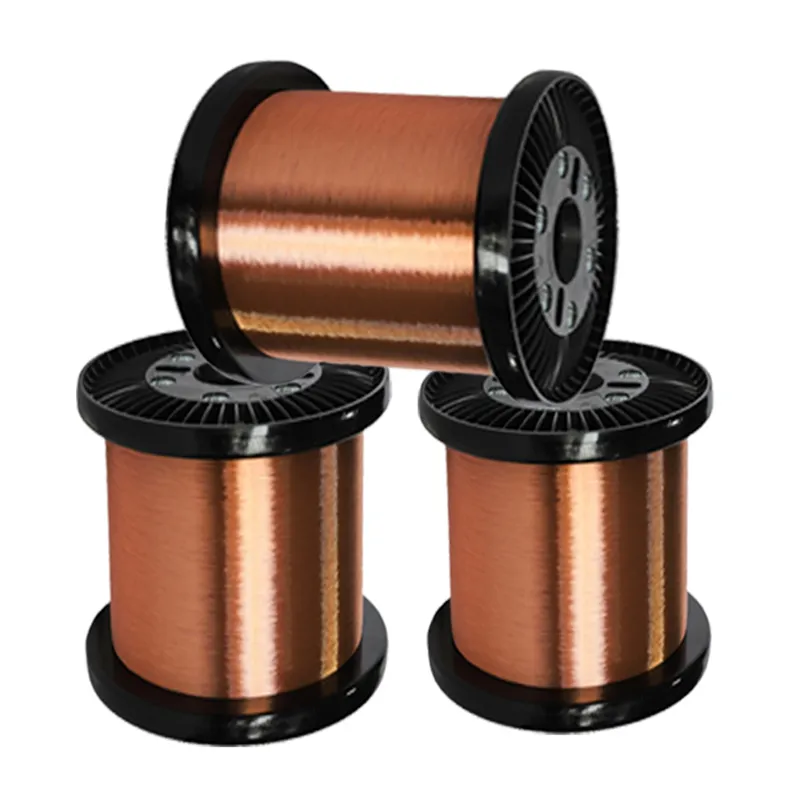

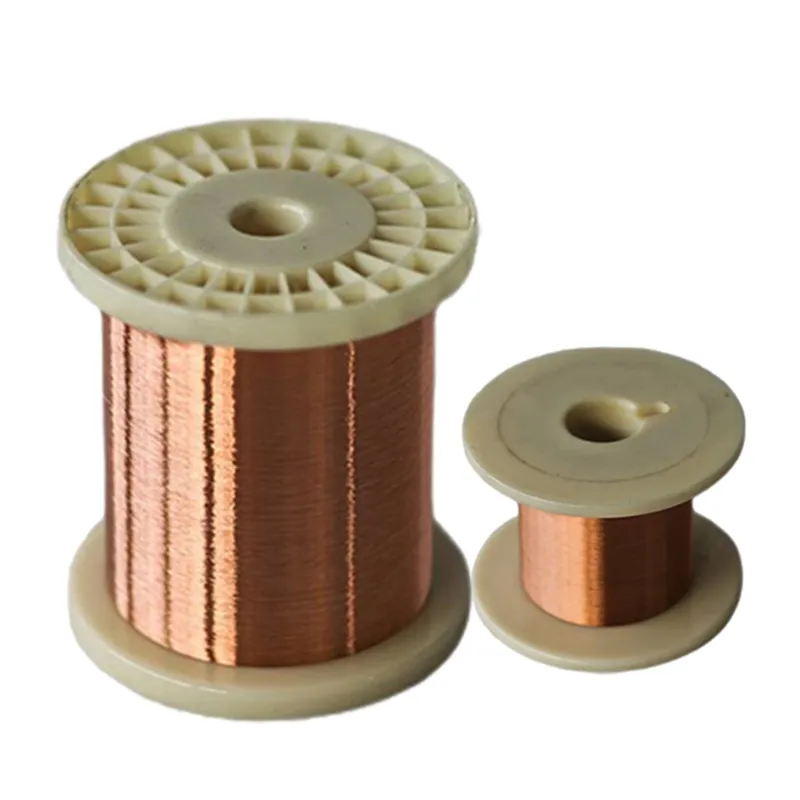

    Aluminum conductor with a thin copper coating

    We manufacture two types of copper-clad aluminum (CCA) wire: clad type and electroplated type, each designed to meet different application needs. CCA single wires are available in diameters ranging from 0.08mm to 6mm and can undergo further processing such as annealing, stranding, and plating to achieve specific technical requirements.

    • Clad Type: This wire is produced using a cladding and welding process, where a copper layer is concentrically bonded to an aluminum or aluminum alloy core. The result is a metallurgical bond between the two metals, ensuring they function as a single, inseparable material. Thanks to this structure, clad CCA wire can be processed like a solid metal conductor, undergoing drawing and annealing while maintaining a stable copper-to-aluminum ratio throughout the process.
    • Electroplated Type: For this type of wire, a controlled layer of copper is applied to an aluminum core through electroplating. This type is commonly used in coaxial cable conductors and electrical wiring, where weight reduction and controlled conductivity are priorities.
    Request a Quote
    Specifications
    Wire Type Copper Content (%) Copper Mass Ratio (%) Length Ratio Density (g/cm³) Max. DC Resistance at 20℃ (Ω.mm²/m) Min. Electrical Conductivity (% IACS)
    Copper Clad Aluminum (10% Copper) 8-12 27 2.65:1 3.32 0.02743 63
    Copper Clad Aluminum (15% Copper) 13-17 37 2.45:1 3.63 0.02676 65
    Copper 100 100 1:1 8.89 017241 100
    Physical & Chemical Properties
      Clad Type State
    10H 10A 15H 15A Hard (Non-Annealed) Soft (Annealed)
    Wire Size (mm) 0.12-8.00 0.12-8.00 0.12-8.00 0.12-8.00 0.12-8.00 0.12-8.00
    Copper Content (%) 25-31 25-31 32-40 32-40 10
    Max. Resistance at 20℃ (Ω.mm²/m) 0.02743 0.02743 0.02676 0.02676 0.02743
    Density (g/cm³) 3.32 3.32 3.63 3.63 2.85
    Min. Electrical Conductivity at 20℃ (%) 62 62 64 64 60
    Elongation (%) 1-3 8-25 1-3 8-25 19-3 8-25
    Tensile Strength (Mpa) ≥250 ≥110 ≥250 ≥110 ≥250 ≥110

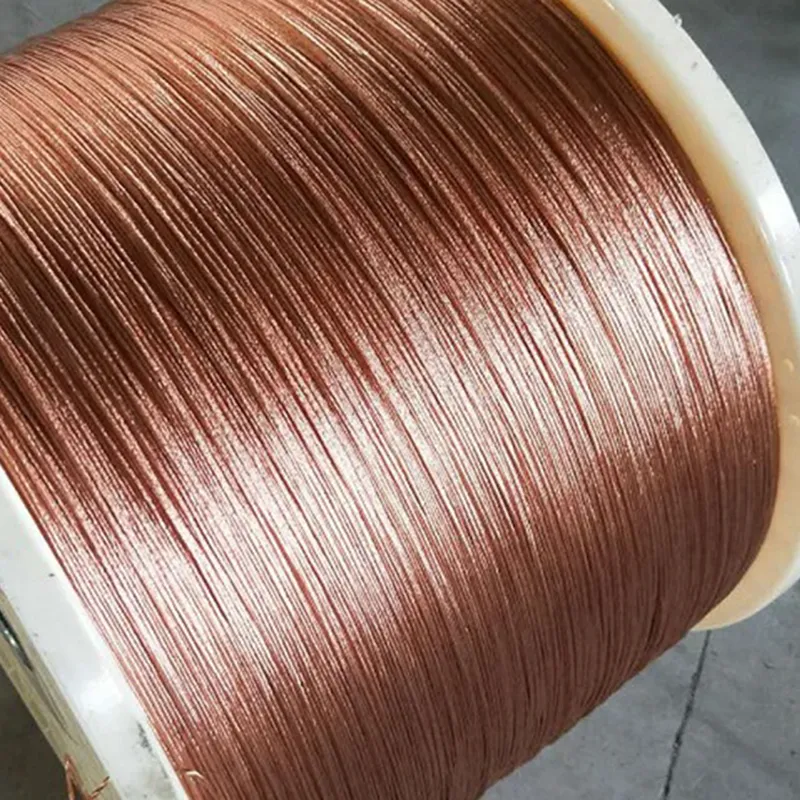

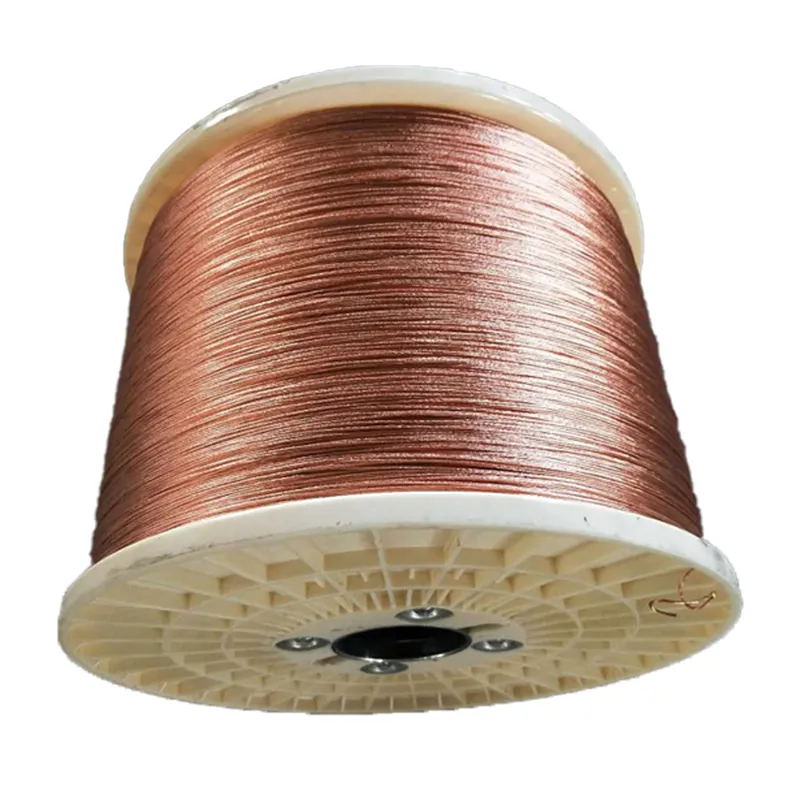

    Stranded CCA Wire
    Cross Section Structure (strands/mm) Max. Resistance (Ω/km) Tensile Strength (Mpa) Elongation (%)
    0.60/0.50 19/0.20 42.20 100-150 1-25
    0.75 19/0.23 34.18
    1.00 19/0.26 26.75
    1.5 19/0.32 17.65
    2.00 19/0.36 13.95
    2.50 19/0.41 10.32
    3.00 19/0.47 8.32
    4.00 19/0.53 6.48
    5.00 19/0.59 5.23
    8.00 19/0.73 3.42
    10.00 19/0.82 2.7
    15.00 19/1.01 1.75
    20-400 Customizable
    Typical Applications

    Copper-clad aluminum (CCA) wires are widely used in various industries due to its lightweight properties and balanced electrical performance. Their applications can be categorized into three main areas:

    • High-frequency signal transmission:
      -Standard conductor material for coaxial cables in cable TV systems
      -50-ohm RF antennas for telecommunications
      -Leaky cables for controlled signal distribution
      -Flexible RF coaxial cables used in wireless communication
      -Data transmission cables for networking and telecommunications
    • Power transmission applications:
      -Stranded conductors
      -Power cables
      -Control cables
      -Automotive wiring
      -Building distribution lines
      -Busbars
      -RF shielding
    • Specialized electromagnetic wire applications:
      -Motor and fan coils
      -Speaker and voice coils
      -Winding applications
    Features
    • Reduces material costs compared to pure copper conductors.
    • Offers higher conductivity than standard aluminum wire.
    • Supports faster signal transmission in electrical and RF applications.
    • Lightweight design simplifies transportation and lowers installation costs.
    Wire Spools & Packaging
    • We provide wire spools in three different types: plastic, wood, and metal. Each option is designed to cater to specific customer preferences and ensure efficient handling and storage.
    • Standard packaging options include cardboard boxes, foam boxes, wooden crates, and wooden pallets, ensuring safe transport and handling.
    • Wooden packaging such as crates and pallets are made from fumigated solid wood or non-fumigated plywood. Custom packaging solutions are available based on customer requirements.
    • Wire Spools & Packaging
    • Wire Spools & Packaging
    • Wire Spools & Packaging
    • Wire Spools & Packaging
    • Wire Spools & Packaging
    • Wire Spools & Packaging
    • Wire Spools & Packaging
